Fiber Laser Cutting Machine for Steel Pipe Tube 1kw 2kw 3kw With Rotary Device
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Raylaser |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,200.00/sets 1-2 sets |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | / | Cutting Speed: | 0~100m/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, DXP | Cutting Thickness: | 0~20mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | FSCUT5000B | Laser Source Brand: | MAX Raycus |
| Laser Head Brand: | Raytools | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Control System Brand: | FSCUT |
| Weight (KG): | 1800 KG | Key Selling Points: | High Productivity Low Maintenance |
| Optical Lens Brand: | Wavelength | Warranty: | 3 Years |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 3 Years |
| Core Components: | Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC | Mode Of Operation: | Continuous Wave |
| Configuration: | 5-axis | Products Handled: | Tube |
| Feature: | Programmable | Performance: | High Performance |
| Speed: | Quickly Fast | Precision: | Accuracy |
| Maintenance: | Low Cost | Chuck Type: | Precise And Reliable |
| Chuck Rated Speed: | 120r/min | ||
Product Description
Products Description
Specifications | ||

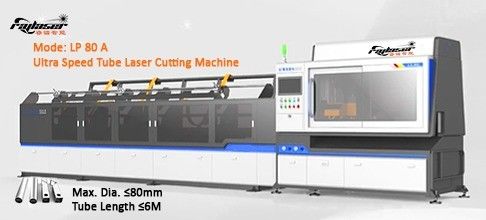

Mode | LP 80 A | |
Power | 1000~3000W | |
X/Y Axis Accuracy | ≤0.03mm | |
Reprecision Accuracy | ≤0.03mm | |
Tube Diagonal | ≤ 80mm | |
Max Loading Weight | ≤ 50KG | |
Laser Source | Raycus / Max / BWT / Reci | |
Cutting Head | Raytools / Boci / Ospri | |
Pipe Length Loading | 6m or customize | |
Cutting Methods | Bevel Cutting Optional | |
Five Star Quality International Supply Chain with Most Adequate Partners The outstanding Industrial Engineering methods for quality Assembly International Industrial Standard and Enhanced SOP Quality Control and Assurance Tools Shipping Protection for Safe Seafreight
Why Choose Us
Five Star Service The detailed and reliable Installation Recommendations The useful tips and tricks for high Machine Utilization like a pro. The Periodic Maintenance Planning and Checkpoints The Low cost but original quality consumable supply The free consultation for professional TPM and OEE Improvement.
Global Presence and Value Added Services
With global standards for performance and reliability. Each year, Shanghai Raylaser continues to maximize your productivity. Our most important tool in achieving this goal is listening to our customers and responding to teir needs.
Shanghai Raylaser Intelligent Technology Co., Ltd. was established in Shanghai, China, The Core team have been working and denoting in Industrial Laser Application over 16 years.
Shanghai Raylaser's Fiber Laser Cutting Systems range from 1kW to 60kW. Their advanced motion and innovative beam delivery systems are engineered to raise productivity, increase cut quality and reduce operating costs.
Welcome to Shanghai Raylaser, Welcome to the Laser Technology and Solutions.
Shanghai Raylaser Intelligent Technology Co., Ltd. was established in Shanghai, China, The Core team have been working and denoting in Industrial Laser Application over 16 years.
Shanghai Raylaser's Fiber Laser Cutting Systems range from 1kW to 60kW. Their advanced motion and innovative beam delivery systems are engineered to raise productivity, increase cut quality and reduce operating costs.
Welcome to Shanghai Raylaser, Welcome to the Laser Technology and Solutions.
