6kw 8kw 12kw 15kw 20kw 30kw Gantry Cnc Fiber Laser Cutting Machine for High Precision
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Raylaser |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/sets 1-2 sets |
| Packaging Details: | Wooden Package suitable for Ocean transportation |
| Supply Ability: | 35 Set/Sets per Month |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 1500mm*3000mm | Cutting Speed: | 0~100m/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cutting Thickness: | 0~30mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | CYPCUT | Laser Source Brand: | MAX Raycus |
| Laser Head Brand: | Raytools | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Control System Brand: | Cypcut |
| Weight (KG): | 3500 KG | Key Selling Points: | High Productivity Low Maintenance |
| Optical Lens Brand: | Wavelength | Warranty: | 3 Years |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 3 Years |
| Core Components: | Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC | Mode Of Operation: | Continuous Wave |
| Configuration: | Gantry Type | Products Handled: | Sheet Metal |
| Feature: | Programmable Servo Motor | Performance: | High Performance |
| Speed: | Quick Fast | Precision: | Accuracy |
| Maintenance: | Low Cost | ||
Product Description
Professional Products as following:
1) The whole welded structural frame by annealing and abrasive blasting, no deformation.
2) Top brand for the mechanical moving system guarantee precision for the whole life of machine.
3) The selected laser source for your professional demands, 24hours continous working machine.
4) The ease of use software and auto focus cutting head for beginner and professional.
5) 17 years of experience for laser cutting application from Shanghai, you deserve our specialist and advantages.
6) Quick response to your further demand and any concern.
7) Our main philosopy is focus on the customer's advantage of production!
Overviews

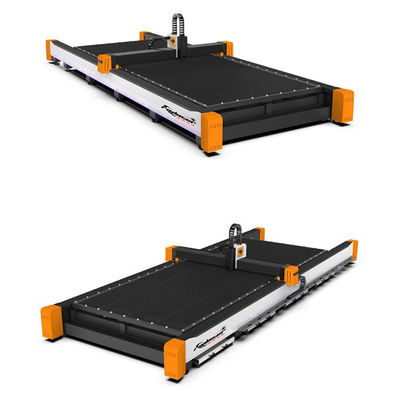

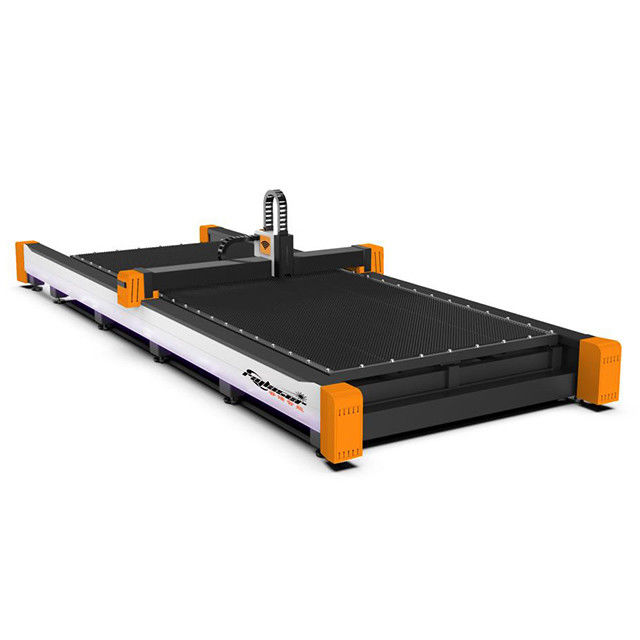

| Model | TF3015Edge |
| Cutting area | 3000mm 1500mm (Cutting Area accepted customized) |
| Fiber laser power | 1000w/1500w/2000w/3000w/4000w/6000w/ |
| 8000w/12000w/20000w | |
| Fiber laser generator brand | Raycus / Max / IPG |
| Laser wavelength | 1,070-1,080mm |
| Interface | USB,RJ45 |
| Moving speed | 60m/min |
| Max Cutting speed | 120m/min |
| Position accuracy | ±0.03mm |
| Repeatability accuracy | ±0.02mm |
| Power supply requirement | 3 phase 380v 50HZ / 60HZ (customized) |
| Max acceleration | 1.0G |
| Table load bearing | 1500KG |
| Compatible software | CorelDraw / AutoCAD / Photoshop / AI |
| Brand of motor and drivers | Japan Fuji; Japan Yaskawa; Taiwan Delta |
| Support graphic format | LXD / DXF / PLT / AI / Gerber / DWG |
| Transmit system | Dual Rack & Pinion type |
| Control system and software | CypCut FSCUT |
| Cutting head | Raytools / Ospri / Precitec |
| Reducer | Japan Shimpo / France Motovario |
| Liner guider system | Taiwan Hiwin / Italy PEK |
| Gear rack | Taiwan YYC / Germany HERION |
| Electrical components | France Schneider |
| Water chiller | S&A / Hanli |
| Optional | Exchanging Table ; Protective Cover |
| Processing material | Metal |
| Gross weight | 3500KG |
| Packing size | 4550*2250*1550mm |
| Packing method | 20GP |
Cutting Parameters
| Material | Thickness (mm) | Assist Air | Speed (m/min) | Power(W) | Presure (bar) | Header Height (mm) | Focus Height | Nozzle Type |
| MS (Q235B) | 1 | N2/Air | 58~62 | 6000 | 12~16 | 0.5 | 0 | Single:2.0 |
| 2 | N2/Air | 31~36 | 6000 | 12~16 | 0.5 | 0~-0.5 | Single:2.0 | |
| 3 | N2/Air | 18~22 | 6000 | 12~16 | 0.5 | -1~-1.5 | Single:2.0 | |
| 4 | N2/Air | 11~13 | 6000 | 12~16 | 0.5 | -2~-2.5 | Single:2.5 | |
| O2 | 3.7~4 | 3000~3500 | 0.6~0.8 | 0.6~0.8 | 4.0~5.5 | Dural:1.2 | ||
| 5 | N2/Air | 8~10 | 6000 | 12~16 | 0.5 | -2.5~-3 | Single:3.5 | |
| O2 | 3.2~3.3 | 4000~4500 | 0.6~0.8 | 0.6~0.8 | 4.0~5.5 | Dural:1.2 | ||
| 6 | N2/Air | 5.5~6.5 | 6000 | 12~16 | 0.5 | -2.5~-3 | Single:3.5 | |
| O2 | 2.6~2.8 | 4000~4500 | 0.6~0.8 | 0.6~0.8 | 4.0~5.5 | Dural:1.2 | ||
| 8 | O2 | 2.5~2.6 | 4500~5000 | 0.6~0.8 | 0.6~0.8 | 5.5~6.5 | Dural:1.2 | |
| 10 | O2 | 2.2~2.3 | 6000 | 0.6~0.8 | 0.6~0.8 | 5.5~6.5 | Dural:1.2 | |
| 12 | O2 | 1.8~2.0 | 6000 | 0.6~0.8 | 0.6~0.8 | 6~7 | Dural:1.2 | |
| 14 | O2 | 1.4~1.7 | 6000 | 0.6~0.8 | 0.8 | 6~7 | Dural:1.4/1.5 | |
| 16 | O2 | 1.2~1.3 | 6000 | 0.6~0.8 | 0.8 | 6~7 | Dural:1.4/1.5 | |
| 18 | O2 | 0.7~0.8 | 2200~2600 | 0.6~0.8 | 1.5 | 2.5~3.5 | Dural:3.5/4.0 | |
| 20 | O2 | 0.6~0.65 | 2200~2600 | 0.6~0.8 | 1.5 | 2.5~3.5 | Dural:4.0 | |
| 22 | O2 | 0.55~0.6 | 2200~2600 | 0.6~0.8 | 1.5 | 2.5~3.5 | Dural:4.0 | |
| 25 | O2 | 0.5~0.55 | 2200~2600 | 0.6~0.8 | 1.5 | 2.5~4 | Dural:5.0 | |
| SS (SUS304) | 1 | N2/Air | 59~65 | 6000 | 12~16 | 0.5 | 0 | Single:1.5 |
| 2 | N2/Air | 32~38 | 6000 | 12~16 | 0.5 | 0~-0.5 | Single:2.0 | |
| 3 | N2/Air | 20~24 | 6000 | 12~16 | 0.5 | -1~-1.5 | Single:2.0 | |
| 4 | N2/Air | 12~15 | 6000 | 12~16 | 0.5 | -2~-2.5 | Single:2.5 | |
| 5 | N2/Air | 9~11 | 6000 | 12~16 | 0.5 | -2.5~-3 | Single:3.5 | |
| 6 | N2/Air | 6~7.5 | 6000 | 12~16 | 0.5 | -3.5~-4 | Single:3.5 | |
| 8 | N2/Air | 4~4.5 | 6000 | 16~18 | 0.5 | -5~-6 | Single:3.5 | |
| 10 | N2/Air | 2.2~2.4 | 6000 | 16~18 | 0.5 | -6.5~-7 | Single:4.0 | |
| 12 | N2/Air | 1.3~1.5 | 6000 | 16~18 | 0.5 | -7.5~-8.5 | Single:4.0 | |
| 14 | N2/Air | 0.9~1.0 | 6000 | 16~20 | 0.5 | -9~-10 | Single:5.0 | |
| 16 | N2/Air | 0.8~0.85 | 6000 | 16~20 | 0.5 | -10~-11 | Single:5.0 | |
| 20 | N2/Air | 0.5~0.6 | 6000 | 16~20 | 0.5 | -11~-13 | Single:5.0 |
The Whole welded frame, abrasive blasting No Deformation.
Top Brand of moving system to guarantee the whole life of precision.

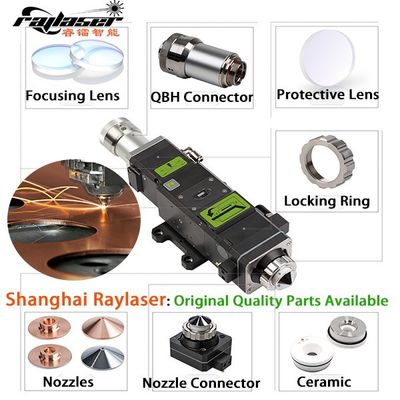

Auto focus cutting head for your ease of use, more efficiency at high quality.
Selected Power souces, Professional and Best solution for the cutting productivity, quality and long life.
The Most advanced and ease of use system to give you no waste material.
This critical function to assure the long life and positioning accuracy.
Laser Cutting Machine based on the mechanical Moving Precision, rely on the active auto lubrication.
The Larger Industrial Touch HMI Screen are Friendly and most enjoyable.
The International Standard Electric Cabinet and Most liked electrical parts for your durable use.
Our Professional and knowledgeable Service will give you a good experience.

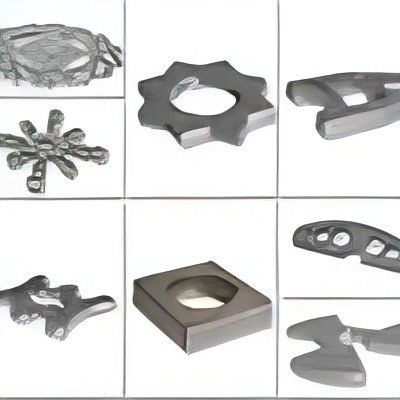

Samples
