The machine tool frame structure is welded by high quality steel plate and steel tube,which have been processed by Vibratory Stress Relief and precision machining by CNC planer type milling machine. The complete structure has the feature of excellent shake proof capacity and rigidity, stability in high speed running and high accuracy cutting.
 |

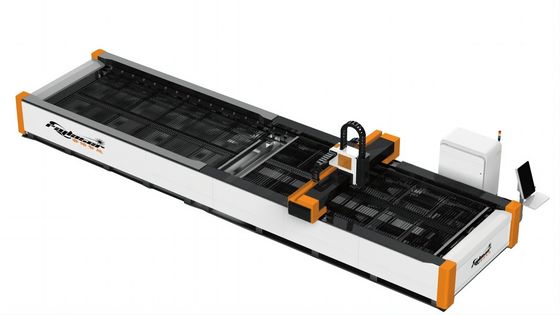

2000*6000 mm 6000W Best Single Table Fiber Laser Cutting Machine for Wavelength Cutting
Product Details:
| Place of Origin: | Shanghai, China (Mainland) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 2000mm*6000mm | Cutting Speed: | 0-800000mm/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cutting Thickness: | 0-30mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | Cypcut | Laser Source Brand: | RAYCUS |
| Laser Head Brand: | Raytools | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Weight (KG): | 7500 KG |
| Key Selling Points: | High-accuracy | Optical Lens Brand: | Wavelength |
| Warranty: | 2 Years | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Printing Shops, Construction Works , Energy & Mining, Advertising Company |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gearbox |
| Mode Of Operation: | Continuous Wave | Configuration: | 3-axis |
| Products Handled: | Sheet Metal | Feature: | Water-cooled |
Product Description
Products Description
Our Laser Machine Feature

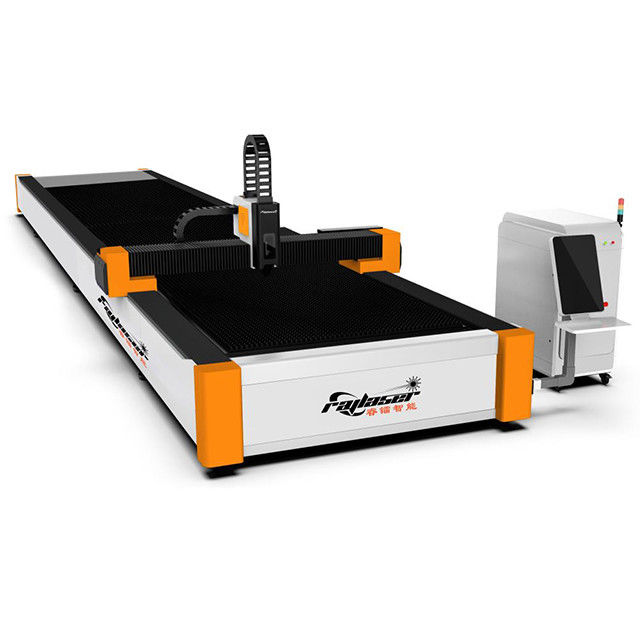

TF-6020 CNC optical fiber laser cutting machine is a complete set of laser cutting equipment. It is composed of fiber laser, chillers, fiber cutting head, cutting machine, control system, water and air system and ventilation system and so on. The whole machine tool is fixed by the workpiece, and the gantry mobile structure is a CNC laser cutting machine with two axes linkage and three axes control. Which X, Y axis linkage to achieve cutting plane feed, Z-axis tracking the workpiece surface floating. X axis and Y axis use AC servo motor to drive rack and rack feed, X axis is double gantry drive; Z axis ses AC servo motor to drive ball screw feed. Laser cutting head, AC servo motor, ball screw, vice guide, reducer, rack and pinion are imported well-known brands. The numerical control system uses the German brand laser special-purpose numerical control system, disposes the specialized cutting control software and the auxiliary programming software.
TF-3015E CNC fiber laser cutting machine for cutting stainless steel, carbon steel, galvanized steel, aluminum, titanium and other metal materials.
TF-3015E CNC fiber laser cutting machine for cutting stainless steel, carbon steel, galvanized steel, aluminum, titanium and other metal materials.
Product Paramenters
No. | Description | Brand |
1 | Fiber Laser Source | MAX/RAYCUS |
2 | Laser Cutting Head | RAYTOOLS/OSPRI |
3 | Machine Tool Body | BEVERLEY |
4 | Gear Box | MOTOREDUCER/APEX |
5 | AC servo motor and driver | YASKAWA |
6 | X axis gear and rack | YYC |
7 | Y axis gear and rack | YYC |
8 | Z axis screw rod | TBI |
9 | Linear guide rail | HIWIN |
10 | Pneumatic System | SMC |
11 | Water Cooling Machine | HANLI/S&A |
12 | Electric Components | Schneider |
13 | CNC Controller | Cypcut |
14 | CAD/CAM Nest software | Cypcut |
15 | Electrical Cabinet | BEVERLEY |
16 | Fume exhausting fan | BEVERLEY |
17 | Scraps bucket | BEVERLEY |
Details Images

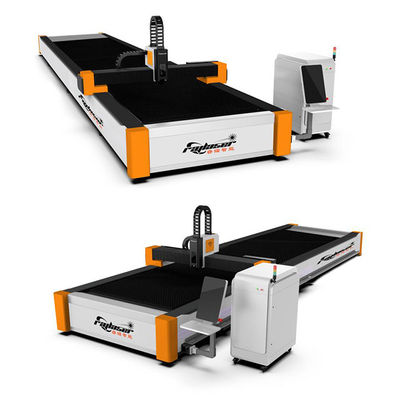

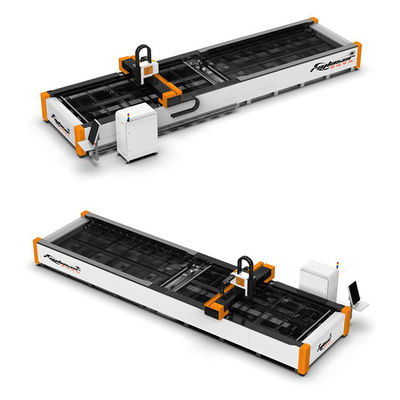

Machine structure
CNC controller
The laser cutting system is a full-featured open-loop control system specially launched for the pipe processing industry. Easy debugging, safe production, rich functions, excellent performance, etc.; supports and provides debugging, personalized, automated,
and information solutions, can realize memory cache, has a powerful cutting process batabase, and cuts a variety of different thicknesses and different plates, fast operation and efficient cutting
Laser cutting head
Laser cutting head with anti-crash function,
nicely sealed, high pressure resistant, auto-tracking system , anti-crash and stop system can protect good cutting quality and
longer the life of lens.
nicely sealed, high pressure resistant, auto-tracking system , anti-crash and stop system can protect good cutting quality and
longer the life of lens.
Laser source
1.Low Energy Consumption: Save energy and
protect environment
2.Photoelectric conversion rate is up to 30-35%
3.Low electric power consumption, it is only about 30%-35% of traditional CO2 laser cutting machine
4.Almost free maintenance
5.Up to 100000 hours of life time
Water cooling unit
Water cooling machine, Large cooling capacity, stable performance, trouble-free, clean water quality, good heat exchange effect with fiber laser, and linkage signal to protect the laser
Linear Guide
In the smooth rolling motion mode of linear
guideway, the difference between static friction and dynamic friction is very small, can be reduced to 1/20~1/40 of sliding
guideway frictional resistance, so the positioning accuracy at the μm level can be achieved.
guideway, the difference between static friction and dynamic friction is very small, can be reduced to 1/20~1/40 of sliding
guideway frictional resistance, so the positioning accuracy at the μm level can be achieved.
Remote controller
Remote controller can free operators from the PC keyboard, it is more portable and compact, which is convenient and humanized.
Exhibition
Product packaging
