Stainless Steel Laser Tube Cutting Machine for Metal Pipe and Profiles at High Speed
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Raylaser |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | / | Cutting Speed: | 0~100m/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, DXP | Cutting Thickness: | 0~20mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | FSCUT5000B | Laser Source Brand: | MAX Raycus |
| Laser Head Brand: | Raytools | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Control System Brand: | FSCUT |
| Weight (KG): | 2100 KG | Key Selling Points: | High Productivity Low Maintenance |
| Optical Lens Brand: | Wavelength | Warranty: | 3 Years |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 3 Years |
| Core Components: | Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC | Mode Of Operation: | Continuous Wave |
| Configuration: | 5-axis | Products Handled: | Tube |
| Feature: | Programmable | Performance: | High Performance |
| Speed: | Quickly Fast | Precision: | Accuracy |
| Maintenance: | Low Cost | Chuck Type: | Precise And Reliable |
| Chuck Rated Speed: | 120r/min | Pipe Length: | Tailored |
| Saving: | No Tail Waste | ||
Product Description
Professional Products as following:
1) The whole welded structural frame with annealing and abrasive blasting, no deformation over 10 years.
2) Top brand for the mechanical motion system guarantee precision for the whole life of machine.
3) The selected laser source for your professional demands, 24hours continous working machine.
4) The ease of use software and auto focus cutting head for beginner and professional to save time.
5) 17 years of experience for laser cutting application from Shanghai, you deserve our specialist and advantages.
6) Quick response to your further demand and any concern.
7) Our main philosopy is focus on the customer's advantage of production!
Overviews:
| Power | 2000~6000W |
| Rotating Speed of Chucks | 100r/Min |
| No-Load Speed | 100m/Min |
| Acceleration | 1G |
| X/Y-Axis Positioning Accuracy | ±0.03mm |
| X/Y-Axis Repositioning Accuracy | ±0.03mm |
| Tail Waste | No |

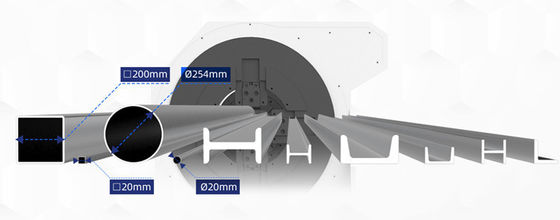

| Cutting Capacity | Round ∅20~240mm |
| Square ¨20*20~¨240*240 | |
| Rectangular Diagonal≤260mm | |
| Max. Weight of Tube | 300KG |
| Overall Dimension | As Required |
The Whole welded frame, abrasive blasting No Deformation.
Top Brand of motion system to guarantee the whole life of precision.

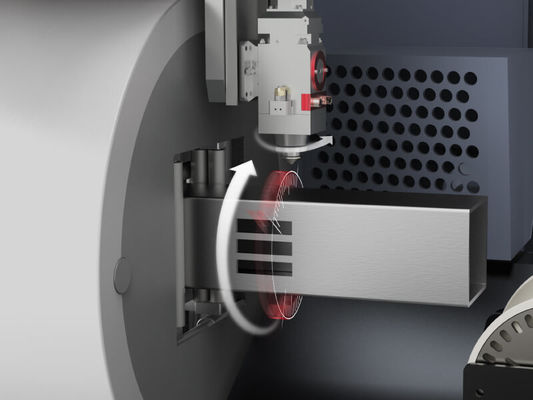

Auto focus cutting head for your ease of use, more efficiency at high quality.
Selected Power souces, Professional and Best solution for the cutting productivity, quality and long life.
The Most advanced and ease of use system to give you no waste material.
Advanced materials, such as high-strength alloys and composite polymers, are being integrated into pipe laser chuck construction, enhancing their ability to withstand harsh conditions and resist wear and tear.
Laser Cutting Machine based on the mechanical Moving Precision, rely on the active auto lubrication.
The Larger Industrial Touch HMI Screen are Friendly and most enjoyable.
The International Standard Electric Cabinet and Most liked electrical parts for your durable use.
Our Professional and knowledgeable Service will give you a good experience.
Samples
1) Professional pre-sale consulting service, offer the most advanced solution.we can offer you comprehensive advice so that you can take advantage of all production possibilities
2) High quality production with detailed process and high standard inspection.
3) We offer training that is individually adapted to different user types, as well as their prior knowledge and requirements
4) Offer consumable parts at low prices
5) Upgrade the system or more needed power to increase productivity at low cost.
6) Our professional technical service team to provide technical guidance and support fot the whole life of machine.
Welcome to Shanghai Raylaser Intelligent Technology Co., Ltd. We are your trusted partner for laser application equipment in various industries. With 17 years of experience deeply rooted in the Chinese laser industry, we have a global presence that extends to Russian-speaking regions, Brazil, Argentina and the rest world.
Our vision: Smart and efficient solutions for all. Whether you need individual machines, automated systems, or specific laser applications, we provide customized solutions tailored to your needs. Shanghai Raylaser sets the benchmark in laser innovations, ensuring reliable production processes for superior quality outcomes.
Q1: I knew nothing about this machine, what kind of machine I should choose?
It’s easy for you to tell us what’s your application, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but have no idea how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we will show you the professional guidance via video instruction.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will offer free parts during machine warranty period.
When out of warranty time we also supply after-sales service at lower cost.
Q4: Before sending us an inquiry, It’s necessary to provide the following information
1)The length and the diameter of the tube.
2) Your materials.
MS,SS,Aluminum Copper...
3) The main and max. thickness you want to cut?
Because different cutting thickness need different laser power source.
