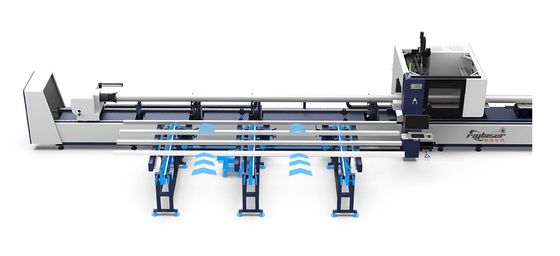

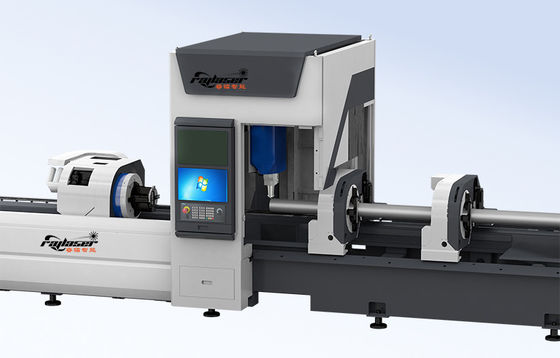

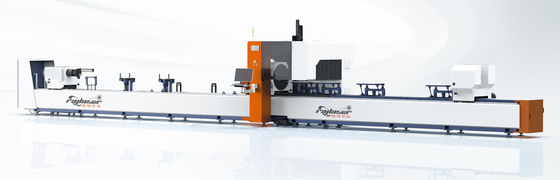

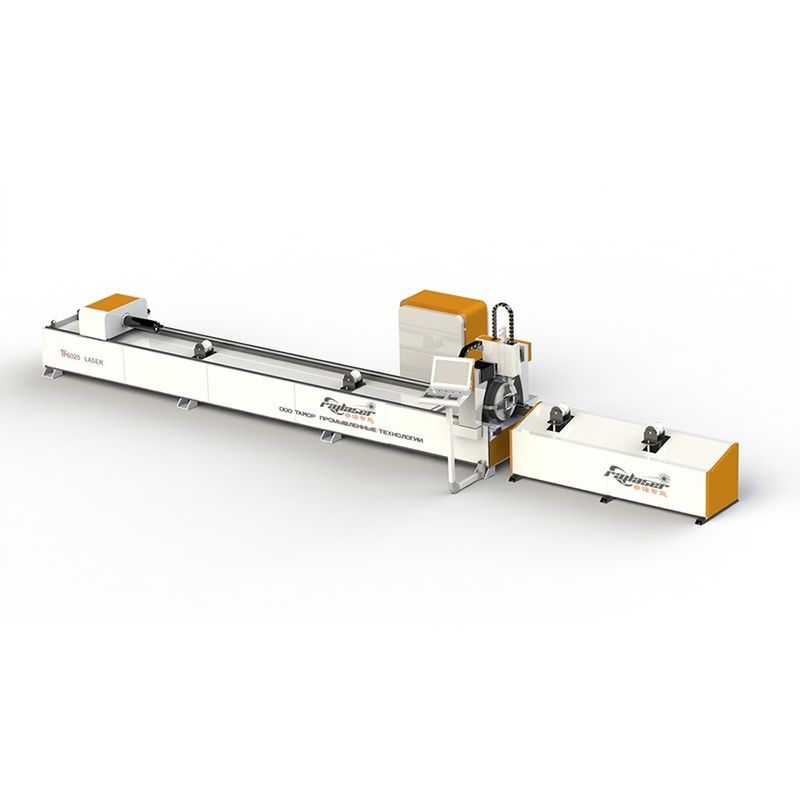

Good Good Service FSCUT Control System Tube Laser Cutting Machine for Performance
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Raylaser |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,500.00/sets 1-2 sets |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | / | Cutting Speed: | 0~100m/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, DXP | Cutting Thickness: | 0~20mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | FSCUT5000B | Laser Source Brand: | MAX Raycus |
| Laser Head Brand: | Raytools | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Control System Brand: | FSCUT |
| Weight (KG): | 2100 KG | Key Selling Points: | High Productivity Low Maintenance |
| Optical Lens Brand: | Wavelength | Warranty: | 3 Years |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 3 Years |
| Core Components: | Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC | Mode Of Operation: | Continuous Wave |
| Configuration: | 5-axis | Products Handled: | Tube |
| Feature: | Programmable | Performance: | Premium Quality |
| Speed: | High Speed | Precision: | More Accuracy |
| Maintenance: | Low Cost | Chuck Type: | Precise And Reliable |
| Chuck Rated Speed: | 120r/min | Pipe Length: | Tailored |
| Saving: | No Tail Waste | Cooling: | Water Chiller |
| Laser Source: | Max Raycus Ipg | ||
Product Description
Products Description
Specifications | ||
Mode | TP 12060 | |
Power | 1000~6000W | |
X/Y Axis Accuracy | ≤0.03mm | |
Reprecision Accuracy | ≤0.03mm | |
Tube Diagonal | ≤ 500mm | |
Max Loading Weight | ≤ 350KG | |
Laser Source | Raycus / Max / BWT / Reci | |
Cutting Head | Raytools / Boci / Ospri | |
Pipe Length Loading | 6m or customize (9m, 12m...) | |
Cutting Methods | Bevel Cutting Optional | |
Five Star Quality International Supply Chain with Most Adequate Partners The outstanding Industrial Engineering methods for quality Assembly International Industrial Standard and Enhanced SOP Quality Control and Assurance Tools Shipping Protection for Safe Seafreight
Why Choose Us
Five Star Service The detailed and reliable Installation Recommendations The useful tips and tricks for high Machine Utilization like a pro. The Periodic Maintenance Planning and Checkpoints The Low cost but original quality consumable supply The free consultation for professional TPM and OEE Improvement.
Global Presence and Value Added Services
With global standards for performance and reliability. Each year, Shanghai Raylaser continues to maximize your productivity. Our most important tool in achieving this goal is listening to our customers and responding to teir needs.
Shanghai Raylaser Intelligent Technology Co., Ltd. was established in Shanghai, China, The Core team have been working and denoting in Industrial Laser Application over 16 years.
Shanghai Raylaser's Fiber Laser Cutting Systems range from 1kW to 60kW. Their advanced motion and innovative beam delivery systems are engineered to raise productivity, increase cut quality and reduce operating costs.
Welcome to Shanghai Raylaser, Welcome to the Laser Technology and Solutions.
Shanghai Raylaser Intelligent Technology Co., Ltd. was established in Shanghai, China, The Core team have been working and denoting in Industrial Laser Application over 16 years.
Shanghai Raylaser's Fiber Laser Cutting Systems range from 1kW to 60kW. Their advanced motion and innovative beam delivery systems are engineered to raise productivity, increase cut quality and reduce operating costs.
Welcome to Shanghai Raylaser, Welcome to the Laser Technology and Solutions.
FAQ
Trying to figure out which Fiber Laser machine is right for you? Contact our team to learn more
Q1 : Our workers can't operate the machine, how to get the trainning?
Q1 : Our workers can't operate the machine, how to get the trainning?
A1: We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days.
Q2 : I don’t know which one is suitable for me ?
A2: Please tell me the following info: 1) Your materials 2) Max size of your material 3) Max cut thickness 4) Popular cut thickness
Q3 : It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do？
A3: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
Q4 : Do you have the document for customs clearance?
A4: Yes,we have Original. At first we will show you and after shipment we will give you Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5 : I don’t know how to use after I receive Or I have problem during use,how to do?
A5: 1) We have detailed user manual with pictures and CD, you can learn step by step.And our user manual update every month for your easy learning if there is any update. 2) If have any problem in use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems solved.We can also provide Door service if you need.
